Exotermic welding mould

Exotermic welding connections are the most commonly used methods for earthing systems , lightning protection systems and cathidoc protection systems .

The mould is one of the main element for performing welding connections .

Different connections need different moulds based on size and connection type .

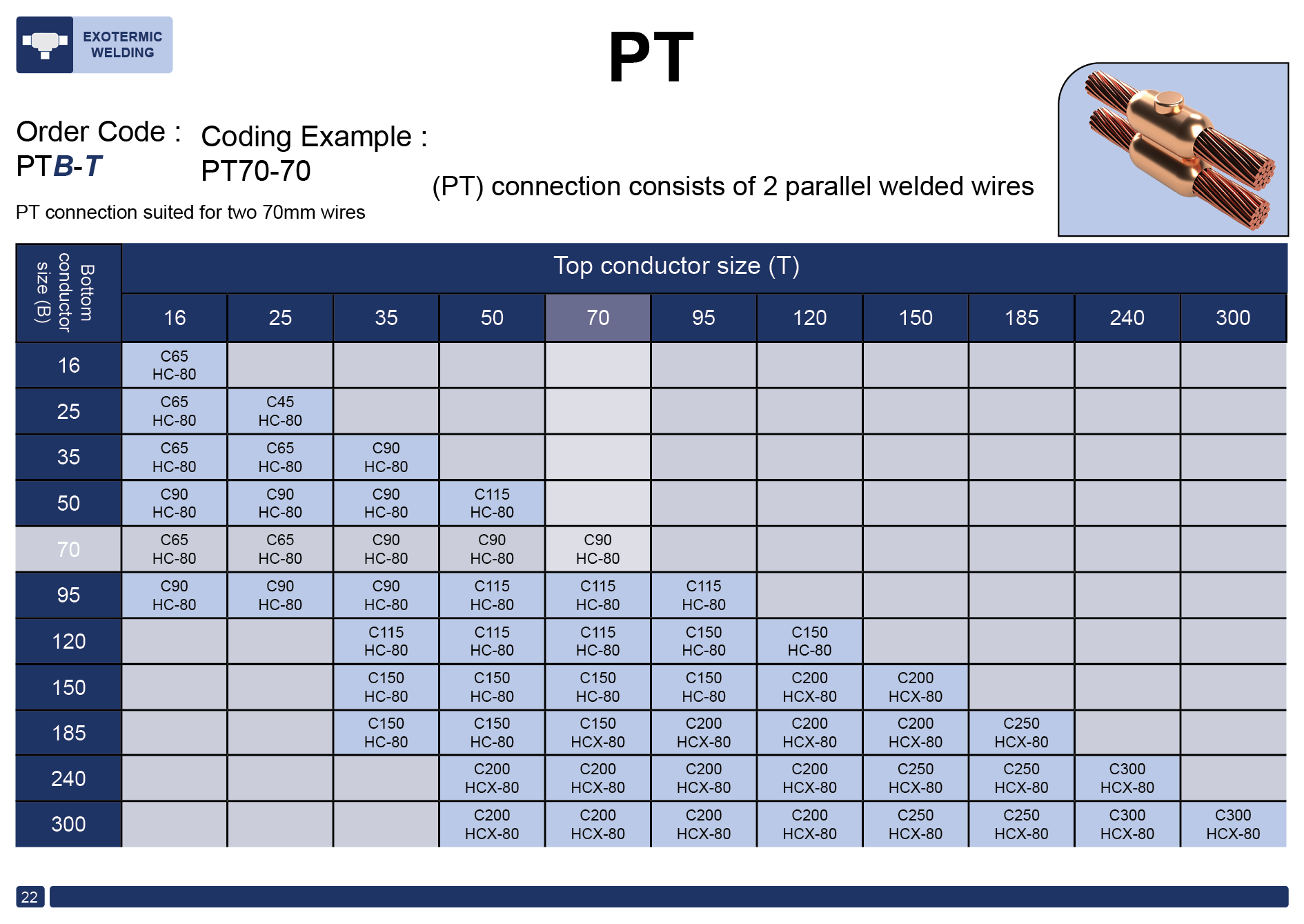

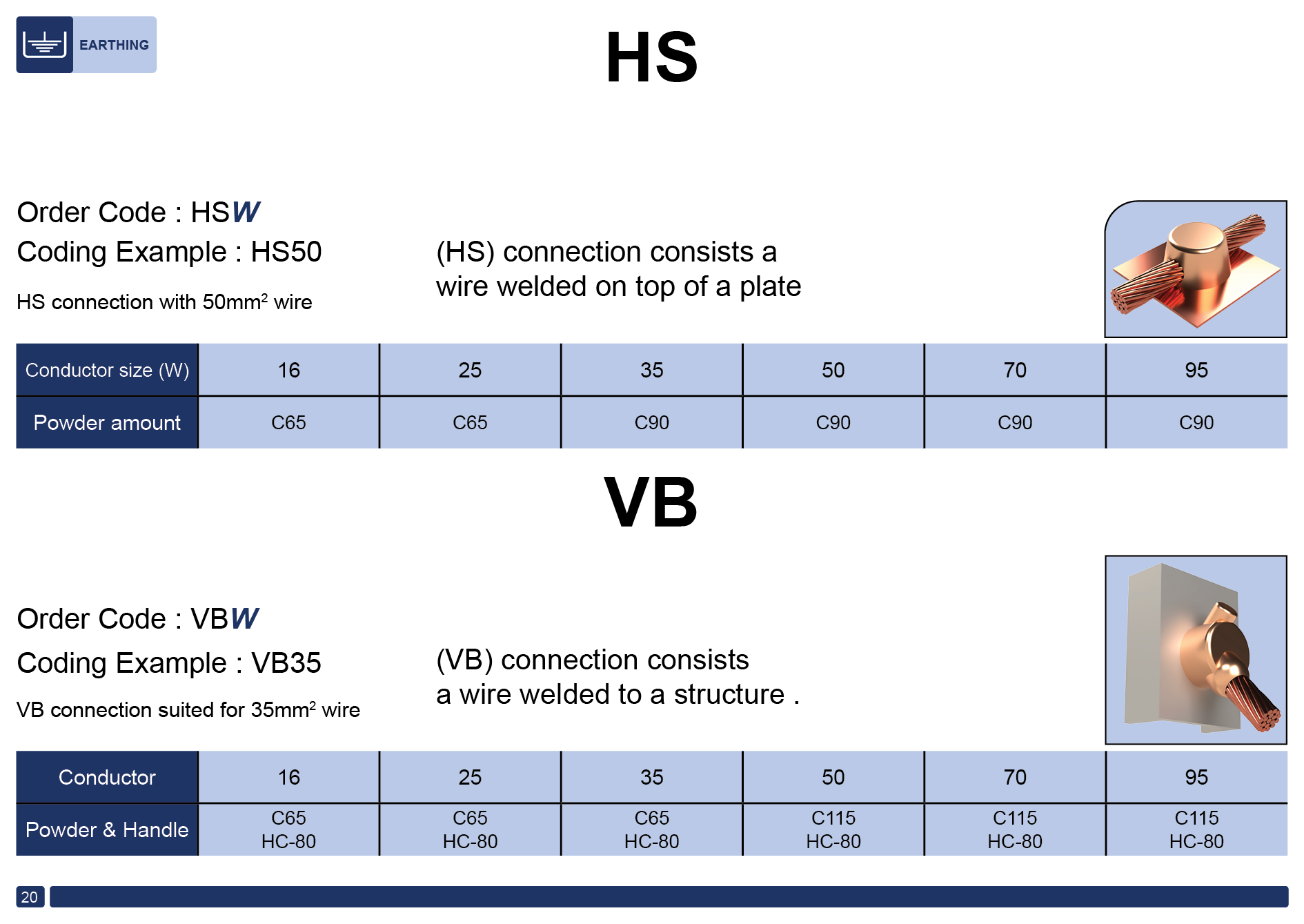

some of the most common connections are 1.cross 2.tee connection 3.parallel 4.head to head 5.plate connections 6.pipe connections .

visit our catalog on the website for furthur more detailed information .

Exotrermic moulds are made out of graphite with a specific density .

Graphite is used because of exremely high thermal resistance to prevent any damage due to high tempretures created by thermal reactions .

moulds application requires a handgrip and special cleaning kit .

handgrip is used for moulds opening , cleaning kits are used for cleaning the mould after every welding action .

DESCRIPTIONS

Exotermic moulds are created out of cnc milled high quality graphites , containing 3 top body and bottom parts (bottom part is not included in some types and connections) .
the curves inside the moulds regards to earthing standards , representing the connection type the mould is created for . exothermic connections should require the minimum physical & mechanical strength for high electrical currents , top holes and exhausts are precisely calculated to expel unwanted slags .
